20W Solar Tile-F20G-01
Update: 2015/6/12 View:
- Brand: SUNCON
- Type: F20G-01
- Introduction: Long life: life up to 50 years;High Power: 2 watts strength than ordinary times, the bending strength of the anti-hail or transport 3000N can withstand impact without cracking; Light weight;Process Environmenta
- Product Source: www.sunconpv.com
Introduction
|
电气参数 Electrical Characteristics
|
|||
|
品名 Type
|
F20G-01
|
||
|
峰值功率 (W) Max-Power Pm
|
20
|
||
|
功率偏差 (W) Power Tolerance
|
+/- 3%
|
||
|
开路电压 Voc(V) Open-Circuit Voltage
|
4.82
|
||
|
短路电流 ISC(A) Short-Circuit Current
|
5.47
|
||
|
最佳工作电压 Vm(V) Max-Power Voltage
|
4.02
|
||
|
最佳工作电流 Im(A) Max-Power Current
|
5.25
|
||
|
电池片效率 (%) Cell Efficeency
|
17%
|
||
|
物理参数 Mechanical Specifications
|
|||
|
电池片尺寸 Cell size (mm)
|
125*125
|
||
|

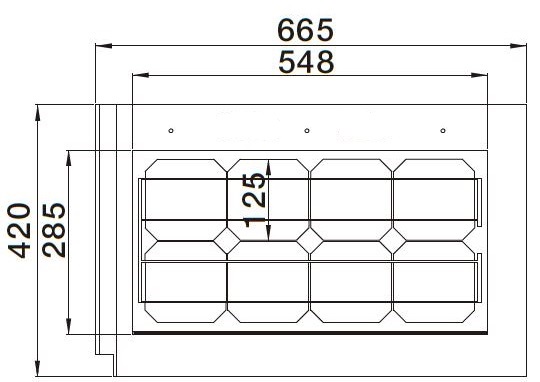

成品尺寸 Dimension (mm)
|
665*420*30
|
||
|
重量 Weight (kg)
|
6.5
|
||
|
边框材质 Material frame
|
ceramic
|
||
|
钢化玻璃 Glass,type and thickness
|
高透光率,低铁钢化玻璃，厚度3.2mm
High Transmission,Low lrion,Tempered Glass 3.2mm
|
||
|
抗压能力 Compression strength
|
>2400pa
|
||
|
渗水率 Water seepage performance
|
<0.5%
|
||
|
20W 光伏瓦 Solar Tile
|
|||
|
尺寸
Tile Dimension
|
功率
Single Power
|
可铺瓦数/M2
Tile Number/M2
|
可铺功率/M2
Power/M2
|
|
665*420*30mm
|
20W/pcs
|
4.6pcs/m2
|
90W/m2
|
|
20W 光伏瓦系统参考信息 Reference Solar Roof System With 8W Solar Tile
|
|||
|
功率选型
Output Power Capacity
|
光伏瓦需求数量
Solar Tiles Quantity
|
系统需求面积
Minimum Roof Size
|
|
|
2.0 KW
|
96 PCS
|
18.9 M2
|
|
|
3.2 KW
|
160 PCS
|
37.0 M2
|
|
|
3.8 KW
|
192 PCS
|
44.3 M2
|
|
|
4.8 KW
|
240 PCS
|
54.9 M2
|
|
|
6.4 KW
|
320 PCS
|
72.9 M2
|
|
